The screen
that disappears
into glass.
Ultra-thin transparent LED modules that bond directly to glass, no frame, no cabinet, no structural changes. Switch it on and your window becomes a holographic display.
Finest pixel pitch in the range. Ideal for retail windows and showrooms where viewers stand 2 to 4 metres away.
The most versatile model. 92% transparency and 4,500 cd/m² brightness for glass curtain walls and atriums at 4 to 8 metres.
Maximum transparency at 95%, highest brightness at 5,000 cd/m², and the lowest power draw. Built for large architectural glass.
LED display that lives on glass
The M Series is a modular transparent LED screen designed to adhere directly to tempered glass, on either the inside or outside face. No cabinet, no structural frame, no drilling. The modules press into place, and when the screen is off, it’s virtually invisible.
When it’s on, it delivers holographic-quality 3D visuals that appear to float in mid-air. Pixel pitches from P2.5 to P10 let you match pixel density to viewing distance and budget.
Modules splice seamlessly in any direction with no limits on width or height, and can curve to fit cylindrical or arched glass down to a 750mm radius.
Built different from the ground up
Truly invisible when off
No frame, no cabinet, no floodlight bleed. The back of the screen is as clean as the front, it disappears into the glass architecture.
Holographic 3D visuals
Playing holographic or 3D video content, images appear to float in space, a genuine naked-eye VR effect for retail, exhibitions, and events.
Ultra-thin at 1.8mm
Each module is less than 2mm thick and weighs just 6kg per square metre, lying flush against glass without altering sightlines or light levels.
Unlimited scalability
Modules splice horizontally and vertically without limit, from a single shopfront window to an entire airport terminal wall.
Curves and arcs supported
Modules flex to fit curved glass. Minimum arc radius of 750mm means cylindrical columns, S-curves, and convex shopfronts are all compatible.
Reusable, up to 3 times
Modules can be removed with distilled water, dried, and reapplied up to three full cycles. Ideal for temporary or relocatable installations.
No structural modifications
Adhere to the inner or outer glass face. No drilling, no reinforcement, no planning headaches. Install and connect. Done.
High brightness & contrast
Up to 5,000 cd/m² brightness and 9,000:1 contrast keeps content punchy even in brightly lit retail and outdoor-facing environments.
Colorlight & NovaStar ready
Compatible with both major LED control ecosystems. Synchronous and asynchronous playback both supported, computer, tablet, or phone.
Where it belongs
The M Series works anywhere there’s glass and an audience worth impressing.
Three models. One platform.
Choose the pixel pitch that matches your viewing distance. Closer viewing = smaller pitch; large architectural installs can go coarser for higher transparency.
| Parameter | Value |
|---|---|

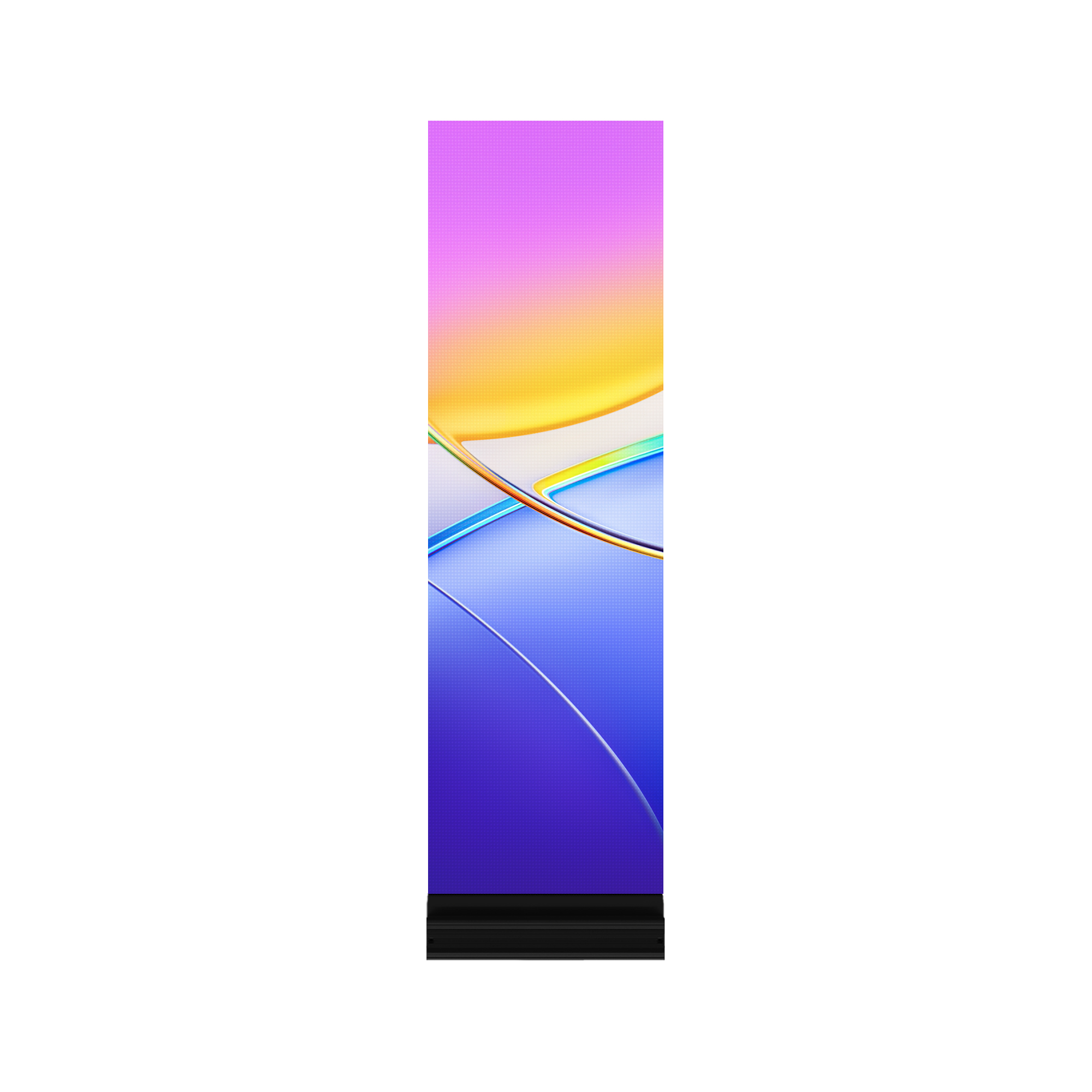

| Model | Series M2 |
| Pixel Pitch | P2.5 / P2.5 (H/V) |
| Pixel Density | 160,000 dot/m² |
| Transparency Rate | ≥70% |
| Module Dimensions | 1025×125mm (400×50 px) · 1200×125mm (470×50 px) |
| Brightness | ≥1,200 cd/m² |
| Max Power Consumption | 800 W/m² |
| Avg Power Consumption | 350 W/m² |
| Grey Scale | 16 bit |
| Scanning Mode | Static driving, single pixel single control |
| Construction | Light board & driving board integrated |
| Control System | Colorlight / NovaStar |
| Input Voltage | AC 100–240V, 50/60Hz |
| Module Voltage | DC 4.2V ± 0.2V |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 20%–85% RH (non-condensing) |
| Storage Temperature | -20°C to +50°C |
| Storage Humidity | 10%–85% RH (non-condensing) |
| Environment | Indoor |
| Lifespan | ≥100,000 hours |
| Parameter | Value |
|---|---|
| Model | Series M3 |
| Pixel Pitch | P3.91 / P3.91 (H/V) |
| Pixel Density | 65,536 dot/m² |
| Transparency Rate | ≥80% |
| Module Dimensions | 1025×250mm (256×64 px) · 1197×250mm (300×64 px) · 1500×250mm (376×64 px) · 1000×250mm (256×64 px) |
| Brightness | ≥2,000 cd/m² |
| Max Power Consumption | 1,000 W/m² |
| Avg Power Consumption | 375 W/m² |
| Grey Scale | 16 bit |
| Scanning Mode | Static driving, single pixel single control |
| Construction | Light board & driving board integrated |
| Control System | Colorlight / NovaStar |
| Input Voltage | AC 100–240V, 50/60Hz |
| Module Voltage | DC 4.2V ± 0.2V |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 20%–85% RH (non-condensing) |
| Storage Temperature | -20°C to +50°C |
| Storage Humidity | 10%–85% RH (non-condensing) |
| Environment | Indoor |
| Lifespan | ≥100,000 hours |
| Parameter | Value |
|---|---|

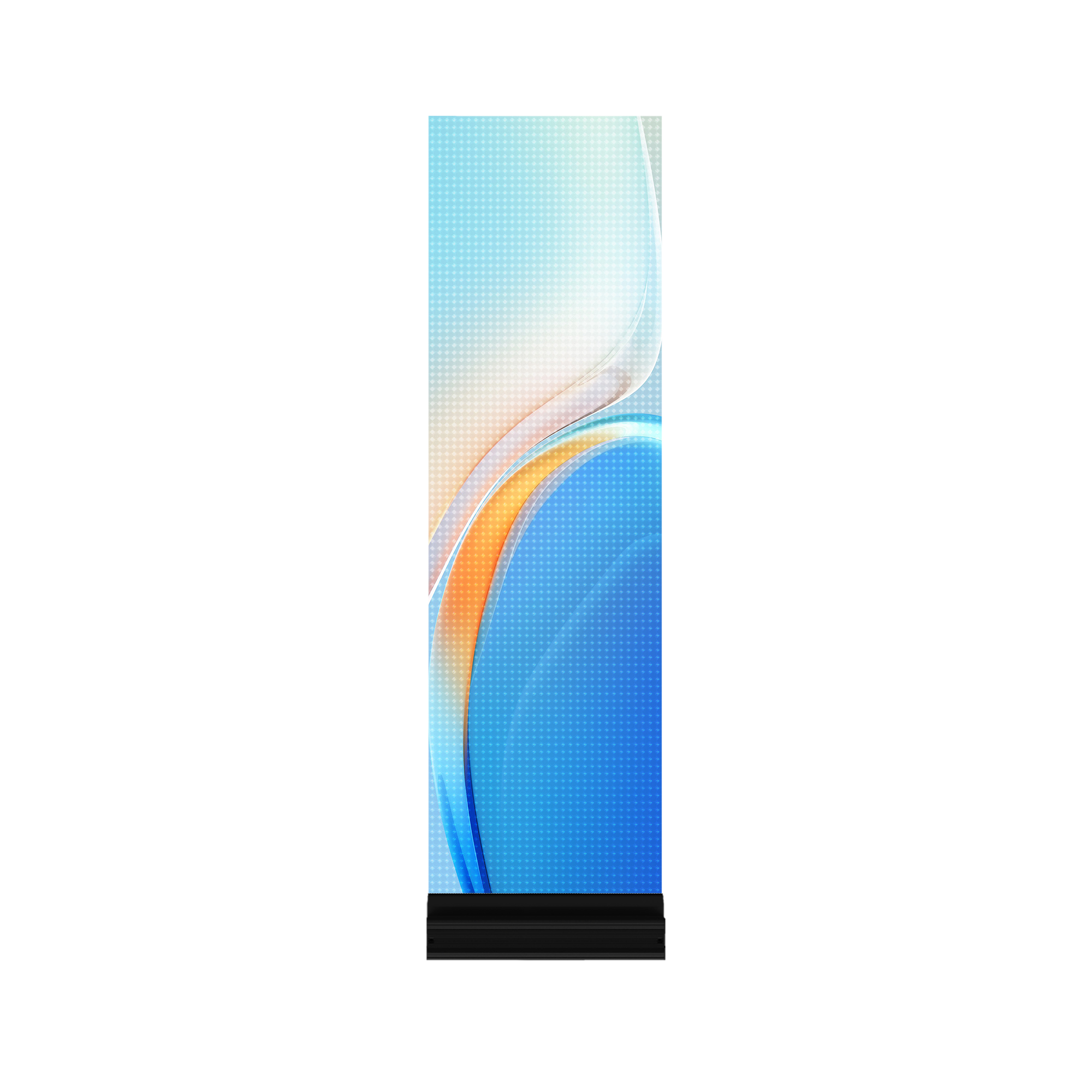

| Model | Series M6 |
| Pixel Pitch | P6.25 / P6.25 (H/V) |
| Pixel Density | 25,600 dot/m² |
| Transparency Rate | ≥80% |
| Module Dimensions | 1025×250mm (160×40 px) · 1200×250mm (188×40 px) · 1500×250mm (236×40 px) · 1200×250mm (192×40 px) |
| Brightness | ≥1,600 cd/m² |
| Max Power Consumption | 1,000 W/m² |
| Avg Power Consumption | 375 W/m² |
| Grey Scale | 16 bit |
| Scanning Mode | Static driving, single pixel single control |
| Construction | Light board & driving board integrated |
| Control System | Colorlight / NovaStar |
| Input Voltage | AC 100–240V, 50/60Hz |
| Module Voltage | DC 4.2V ± 0.2V |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 20%–85% RH (non-condensing) |
| Storage Temperature | -20°C to +50°C |
| Storage Humidity | 10%–85% RH (non-condensing) |
| Environment | Indoor |
| Lifespan | ≥100,000 hours |
How installation works
No structural engineer required. A trained installer can complete a standard shopfront fit-out in a single day.
1Glass requirements
- Fully white tempered glass, rated to 300°C
- Clean, dry, and moisture-free before application
- Acrylic and non-tempered glass not suitable
- Curved glass: min. radius 750mm (M3) / 2m (M6)
2Power box
- Fix base plate or timber backing to glass first
- Secure control box to the backing board
- Connect IDC signal cable from supplied accessories
- Connect cascade network cables between boxes
3Module application
- Mark a level horizontal reference line on the glass
- Remove protective film from module backs
- Do not mix Module A and Module B types
- Press firmly, work from one edge or centre outward
4Wiring & configuration
- Connect power and signal cables to each module
- Connect HDMI and config cable to controller
- Load software and config files from supplied USB
- Send Module A and B config files separately
Power-off is the reverse. Always allow 5 minutes between on/off cycles.
Common questions
Ready to put it on glass?
Tell us about your space, glass dimensions, environment, viewing distance, and we’ll recommend the right pixel pitch and put a quote together.
